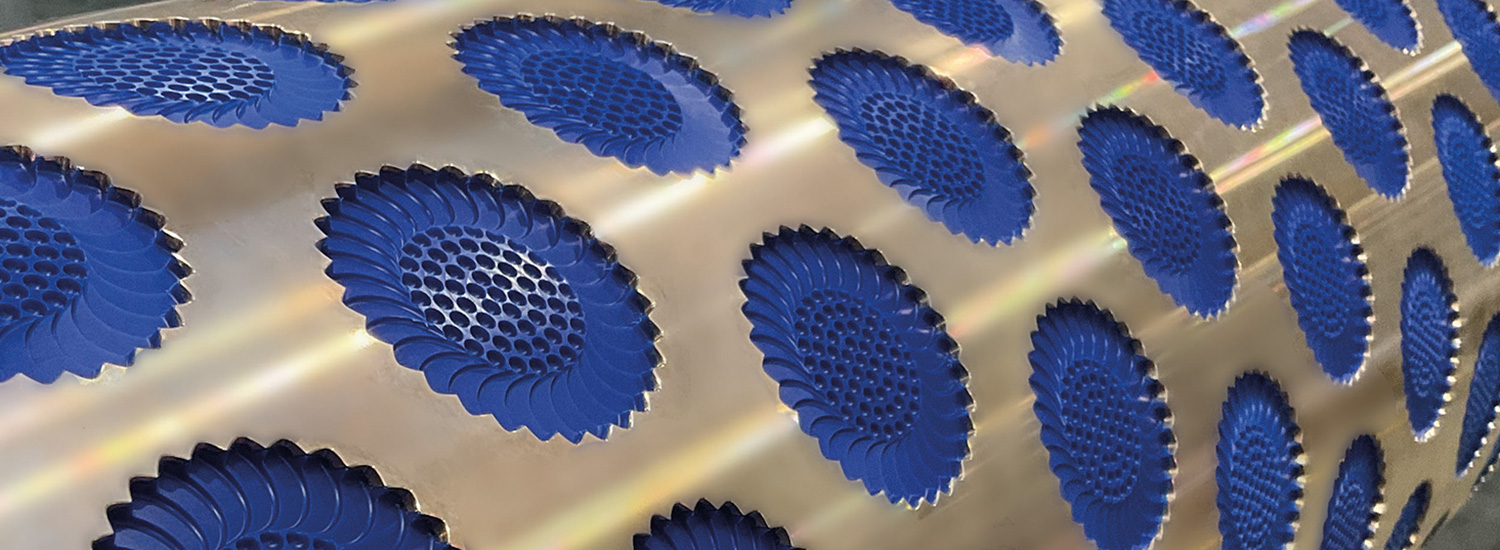

Rotary moulding rollers are used for soft doughs, where there is not much variation in dough properties. With this process it is quite easy to engrave the design, and we can also get two different kinds of dough separated in the hopper for a bi-coloured production. Rotary moulding rollers are made with  non-toxic materials complying with food regulations and in particular they have a bronze body which can be or not teflonized and / or plastic material. And when the material is not enough for assisting a good performance of the release and long life of the roller, Errebi Technology consider special treatments such as sand blasting, or again, special construction of rollers with controlled temperature. Rotary moulding rollers have a particular geometry on which we can recognize staggered or straight rows, pitch of engravings, distance to distance specially designed to exploit the surface of the roller as much as possible but in respect of the distance to avoid sticking of the products to each other. The construction consists in a shaft with steel drum to be strong enough to prevent any bending and to support a set of interchangeable rings made with bronze and plastic, or bronze and Teflon coating. In some cases the construction can also be a solid one,  but in all cases the proposals are customized solutions based on single needs. The rotary moulding roller is meant to be the heart of the process, while its cavites are meant to be the heart of the roller. It is not merely a recessed area to be filled with dough. Errebi Technology do a lot of design projects behind: radius, release angle, compensation in depth are just a few examples of all the parameters our engineers must take into consideration when designing a new mould. The whole to prevent and avoid “tails” on the biscuits, in other words that distorsion mainly caused by high speed of abrasive doughs and causing uncontrolled weights, low quality and thus higher costs in the process; but also to compensate in case of special oblong designs and/or very soft doughs with different depth in the cavity and avoid the so called “Pisa tower” effect and all the problems related with stacking and packaging. From this study it will depend a perfect release, a balanced requested weight and sizes of the final cookie.


The construction can be at interchangeable rings (usually with 1 spare ring)  or solid construction: interchangeable rings offer more flexibility: in case of accident you can easily replace the damaged ring with the spare one; in case of new product to be tested, the trials can be done directly in production for a 100% sure test in terms of release, weight, thickness, dimensions…

Rings can also be designed with “waved” sides, for implementing quantity of pieces in production per revolution.

Choose the type of material >


All materials are non-toxic materials complying with food regulations.
The cavities of the roller can be in bronze, or bronze and Teflon coating, or with different kind of plastics

Blue Errebi

White Errebi

Orange Errebi

Beige Errebi

Coatings Errebi

main features


Acetal resin with excellent mechanical characteristics stable to humidity, low friction coefficient, dimensional stability, impact compression resistance and high resistance to fatigue.


Polytetrafluoroethylene with physical and chemical characteristics which cant be find in any other plastic materials. Excellent resistance to aging, self-lubrificant, minimum coefficient of friction.


Acetal resin modified with addition of approx 20% PTFE. This modification improves the features of sliding and resistance to abrasion. It has high resistance to fatigue.


Excellent polyeterchetone material with hardness properties. Resistance to sliding. Low friction coefficient. Impact resistance.


Bronze with Teflon coating
